ESP Cable and Control Line Protectors (Stamping)

ESP cable and control line protectors (stamping) are used to protect any configuration of ESP cables, control lines or encapsulated lines in the wellbore. Channels are designed to shield cables or lines as they transit across the tubing coupling to prevent from damage during installation or retrieval of completions. Field installation is quick and simple using hydraulic driven installation tools

    Application
  • ESP cable
  • Subsurface safety valves control line
  • Chemical injection line
  • Coiled tubing
  • Permanent Gauges
  • Intelligent Wells
  • Fiber Optics
    Available
  • Cross coupling protectors, Mid joint protectors
  • Materials: Carbon steel or stainless steel
  • Tubing sizes from 2 7/8” O.D. to 7” O.D.
  • Configurations for flat, round, or square cables, lines
  • Custom-made upon request
mid joint protector

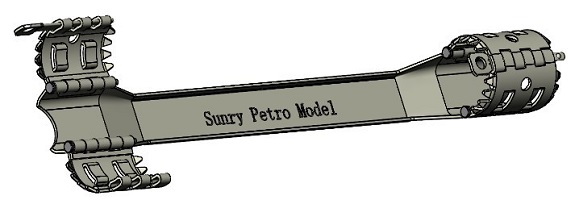

cross coupling protector
