Containerized Steam Generator

Containerized steam generator consists of the boiler, water treatment equipment and accessories in one container and can be installed in any mobile transport equipment. It is characterized by: movement fast, safe and convenient to provide steam and heat for oil drilling, oil products, mining drilling, military field site operations. It is suitable for place or project where the fixed boiler room is inconvenience to support.

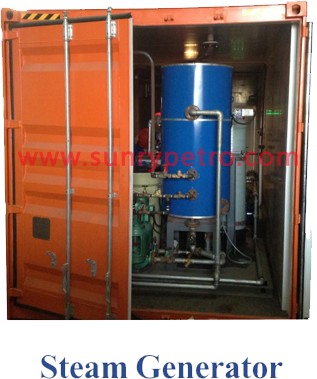

steam generator

Steam Generator Specification

Model LTYF 0.5 LTYF 1.0 LTFY 1.5 LTYF 2.0 LTYF 3.0
Rated Steam Capacity (Kg/h) 432 784 1309 2000 3000
Rated Working Pressure (Mpa) 0.7 0.7 1.0 1.0 1.0
Safety Valve Rated Pressure (Mpa) 0.85 0.85 1.1 1.1 1.1
Type of fuel Light Diesel, Heavy Oil, Natural Gas
Fuel consumption (Kg/h) 31.1 56 98 130 207.4
Electric motor (KW) 2.2 5.5 10 15.5 19
Water treatment type GSC-2 GSC-4
Electric Voltage 380VAC / 50HZ
Chimney diameter (mm) DN300 DN380 DN450 DN550 DN550
Steam outlet DN32 DN50 DN65 DN80 DN80
Water inlet DN15 DN20 DN25 DN25 DN25
Fuel inlet /outlet DN15/10 DN15/10 DN25/20 DN25/20 DN25/20
Gas inlet DN25 DN32 DN50 DN50 DN80
Weight (Kg) 610 1120 9020 9800 9800
Overall dimensions L×W×H (mm) 5000×2200×2400 5000×2200×2400 6000×2900×2800 7000×2900×2870 8000×2900×3200
