Oil and Gas Manifold

Oil and gas manifold diverts oil or gas, without flow interruption, from the separator to crude oil burner for disposal, to surge tank or gauge tank for measurements or storage, or to a production line. Oil and gas manifold also isolates the test equipment to prevent flow interruption if the testing equipment is pulled out of service temporarily.

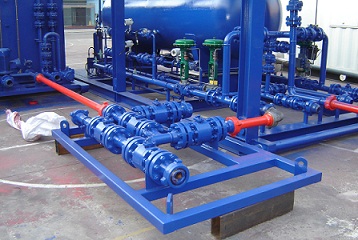

The oil manifold typically consists of five ball valves arranged as a manifold and is skid-mounted. The gas manifold is fitted with two ball valves and also mouted on a skid.

Oil and gas manifold valves adopt a proven metal-to-metal, double-sealing design to resist harsh environment operations. All models comply with all applicable standards, such as API Spec. 6D and NACE MR 0175.

    Application
  • Exploration, development, and production wells using surface well testing equipment
oilgas manifold
