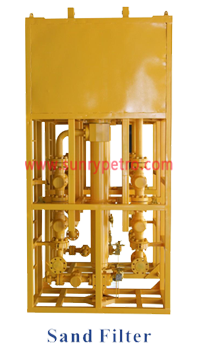

High Pressure Sand Filter

Dual-pot sand filter with sand jetting system (wellhead sand separator) is used to remove sand and other solid particles from oil and gas well effluent to prevent erosion of downstream equipment.

Typical applications for the unit include completion cleanups and maximum sand-free rate tests. This filter is typically located after the wellhead flowhead upstream of the choke manifold.

Dual pot sand filter consists of two filter pots, one manifold and one sand jetting system. The frame-mounted pots have lifting support for convenient filter replacement. Both of two pots can be on stream at same time. Normally, one vessel is in use, another is being cleaned by sand jetting system.

    Features
  • Sand jetting system makes sand-clean job easier
  • Can be designed into two or three parts suitable for helicoper transportation
  • Sour Service: Latest NACE MR 0175
  • Design Codes: API-6A (PSL-3), ASME B31.3
  • Working pressure: 10,000 psi or 5,000 psi
  • Working Temperature: –20 to 121 deg C [–4 to 250 deg F]
  • Gas flow capacity: up to 3,000,000 m3/d
  • Liquid flow capacity: 15,000bpd
  • Custom-made is available
