Cameron H2 Chokes and Parts

Cameron H2 positive chokes and adjustable chokes spare parts are available, such as needles, seats, BIG JOHN choke beans, gaskets, packings, O-ring and so on. All of our Cameron H2 positive choke and adjustable choke parts are 100% interchangeable, competitively priced, high quality and durability.

    Features
  • 100% Interchangeable with Cameron H2 Chokes
  • Stem needles are sprayed with carbide alloy , seats are made of carbide alloy
  • Full length insert of choke bean are carbide alloy
Choke Stems
ciw5000

2” NOM x 1” MAX H-2 - 5,000 psi or 10,000 psi

a_ciw3stem

3” NOM x 2” MAX H-2 - 5,000 psi or 10,000 psi

H2 and H2 "Big John" Choke Seats
H2 Choke Seat H2 Choke Seat H2 Choke Seat H2 Choke Seat
2” NOM x 1” MAX H-2
1/2”, 3/4”, 1” Orifice
2 1/4”Long
1 11/16” Hex
2” NOM x 1” MAX H-2 “BIG JOHN”
1/2”, 3/4”, 1” Orifice
6” Long
1 11/16” Hex
3” NOM x 2” MAX H-2
2” Orifice
3 3/16” Long
2 3/4” Hex
3” NOM x 2” MAX H-2 “BIG JOHN”
2” Orifice
6” Long
2 3/4” Hex

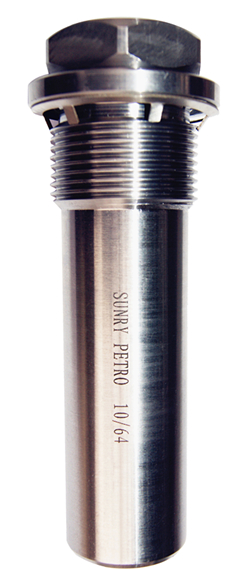

H2 and H2 "Big John" Choke Beans
H2 Choke Seat H2 Choke Seat H2 Choke Seat
2” NOM x 1” MAX H-2br
4/64 - 64/64” Orifice
2 1/4” Long 1 11/16” Hex
2” NOM x 1” MAX H-2 “BIG JOHN”
4/64 - 64/64” Orifice
6” Long 1 11/16” Hex
3” NOM x 2” MAX H-2 “BIG JOHN”
4/64 - 128/64” Orifice
6” Long 2 3/4” Hex

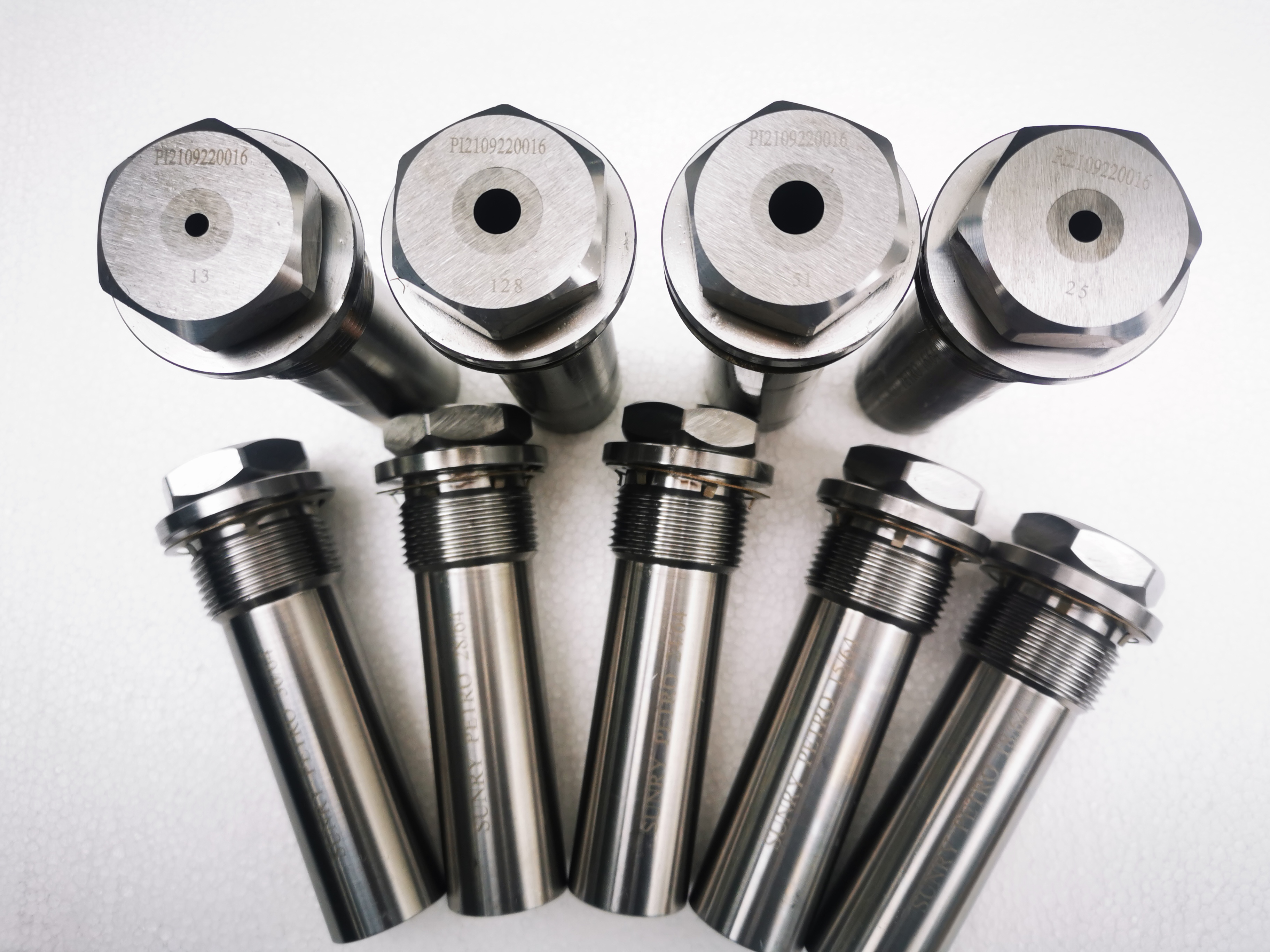

Ceramic Choke Beans

Ceramic choke beans lined with silicon carbide-boron carbide composite or AL2O3 ceramic are available, especially effictive for sandy oil and gas wells.

    Features
  • Alloy steel body, ceramic liner is inserted into choke beans in maximum length.
    Available
  • Medium: oil and gas accompanied with sour gas or / and sand
  • 1" Maximum and 2" maximum orifice.
  • Choke bean size: 4/64" ~ 128/64" in minimum steps of 2/64"
  • Cusomized dimension
ceramic choke bean
