Cementing and Circulating Hoses

Cementing and circulating hoses can handle a complete range of standard and sour gas fluids at cold working pressures up to 15,000 psi. They are composed of swivel joints and straight pipes, and featured by flexibility , stability, quick installation and easy dismantling. They can be easily connected with pumps or other pipes with Fig 1502, Fig 1002 and Fig 602unions.

Recommended Services

High-pressure discharge lines, water lines, temporary flow lines,  cementing and circulating lines, and other high-pressure applications

Available

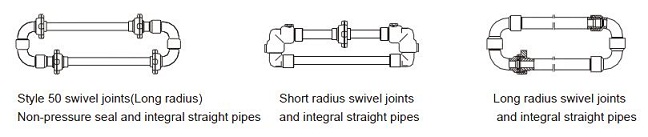

Three types of hose loops are available: short radius flexible manifolds, long radius flexible manifolds and integral type flexible manifolds.

cementing and circulating hose
Bore Size Working Pressure Type of Swivel Joints
1" 3,500, 6,000 psi (25,42MPa) Short radius swivel joints
1 1/2" 6,000, 10,000 psi (42,70MPa) Short radius swivel joints
2" 3,000, 6,000,10,000,15,000 psi (21,42,70,105MPa) Short and long radius swivel joints
3" 6,000,10,000,15,000 psi (42,70,105MPa) Short and long radius swivel joints
