Pup Joints - Flowline Pipes

Pup joints (flowline pipes) are designed to be compatible with FMC Chiksan pup joints and SPM pup joints, based on techlonogies imported from FMC pup joints.

Integral Pup Joints are available in lengths to 10 feet to handle fluids at cold working pressures to 15,000 psi. Sour gas pup joints are also available.

    Available
  • Cold Working Pressure: from 6,000psi to 15,000psi
  • Nominal Pipe Size: 2" to 4"
  • End Connection: Fig 602, Fig 1002, Fig 1502
  • Sour gas service are available

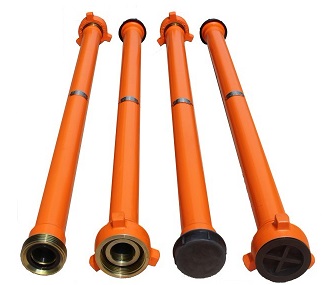

pup joint
Description End Connection Cold WP Diameter (inch)
1-1/2" 2" 3" 4"
Integral Pup Joints FIG 602 (6,000psi 42Mpa) y y y
FIG 1002 10,000psi (70Mpa) y y y
FIG 1502 15,000psi (105Mpa) y y y
Integral Pup Joints for sour gas service FIG 602 5,000psi (35Mpa) y y y
FIG 1002 7,500psi (53Mpa) y y y
FIG 1502 10,000psi (70Mpa) y y y
Welded Pup Joints FIG 602 6000psi (42Mpa)   y y y
FIG 1002 10,000psi (70Mpa) y y y y
FIG 1502 15,000psi (105Mpa) y y y y
